🔄 Quick Recap

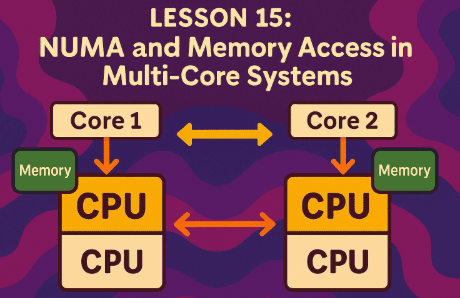

In Lesson 15, we explored NUMA and learned that in multi-core and multi-CPU systems, some memory is “close” and some is “far,” which affects speed.

But here’s the bigger picture: Even with fast CPUs, huge caches, and modern RAM, computers still slow down. Why?

The answer often lies in memory bottlenecks.

🛑 What is a Bottleneck?

A bottleneck is the narrowest part of a system that limits performance.

👉 Imagine all your friends leaving a classroom. Even if the classroom has many exits, if all your friends must squeeze into a door, it becomes difficult and everyone slows down.

👉 Similarly, in a computer, if the CPU is ready to work but memory can’t feed it data fast enough, performance drops.

This is called a memory bottleneck.

📊 How Memory Bottlenecks Happen

Memory bottlenecks can happen in several ways:

1. CPU Waiting for RAM

   • CPU cycles are wasted when RAM is too slow to deliver data.

   • This is common in gaming and data-heavy tasks.

2. Limited Bandwidth

   • If the memory bus (the data highway) isn’t wide enough, data gets stuck in traffic.

   • Example: Single-channel RAM vs dual-channel RAM.

3. High Latency

   • Even with fast bandwidth, if each request takes many cycles, the CPU sits idle.

4. NUMA Remote Access

   • In multi-core systems, cores fetching data from “far away” RAM create bottlenecks.

⚖️ Analogy: The Hungry Chef

• CPU = Chef who can cook 10 meals per minute.

• RAM = Assistant bringing ingredients.

• If the assistant is slow, the chef just stands waiting, even though he’s skilled.

This is exactly what happens in memory bottlenecks: The CPU is underused because it’s waiting for data.

🧮 Real-World Examples

Example 1: Gaming 🎮

A game runs smoothly at 120 FPS, but when many objects appear (like an explosion with 100 enemies), FPS drops sharply. Why?

• The CPU is asking for too much data (textures, physics values).

• RAM can’t keep up → bottleneck → stutter.

Example 2: Video Editing 🎬

Large 4K video files stored on an HDD choke the memory system.

• CPU could process frames quickly.

• But loading from slow storage → bottleneck.

Example 3: AI Workloads 🤖

Training a neural network requires massive memory bandwidth.

• If RAM can’t feed the GPU fast enough, training slows drastically.

🛠️ How to Reduce Memory Bottlenecks

1. Use Faster RAM

   • Higher frequency + lower latency = less waiting.

2. Increase Bandwidth

   • Use dual-channel or quad-channel memory.

3. Optimize NUMA Access

   • Assign processes to cores with local memory.

4. Use Cache Effectively

   • CPUs predict what data will be used next.

5. SSD Over HDD

   • Faster storage reduces bottlenecks in data-heavy apps.

📡 A Modern Case Study: Intel vs AMD Memory Bandwidth

• AMD’s Infinity Fabric links CPU chiplets to RAM. If not tuned to memory speed, bottlenecks appear.

• Intel’s architecture often has stronger single-core RAM latency, so some tasks run smoother.

👉 This shows memory bottlenecks aren’t only about RAM speed — they depend on system design.
