🔄 Quick Recap

• In Lesson 9, we learned that the CPU and RAM are like chef and counter, talking through memory buses.

• In Lesson 10, we zoomed in on the memory bus, which acts like a highway system with address, data, and control lanes.

Now we ask: How do these buses know when to move cars (data) forward? How does the CPU know when RAM has finished getting the data?

The answer lies in clock cycles and synchronization ⏰.

⏰ What is a Clock in Computing?

When we say “clock” in a computer, we don’t mean a wall clock or wristwatch. Instead, a computer clock is a tiny electronic metronome.

👉 A metronome is a device musicians use to keep time, ticking regularly: tick… tick… tick…
👉 Similarly, the computer clock makes electrical pulses at an extremely fast and steady rate.

Each tick = one clock cycle.
The CPU and RAM use these ticks to stay in rhythm, just like dancers moving to the same beat.

⚡ Clock Speed – How Fast is the Beat?

Clock speed is measured in hertz (Hz), which means cycles per second.

• 1 hertz = 1 cycle per second (very slow).

• 1 megahertz (MHz) = 1 million cycles per second.

• 1 gigahertz (GHz) = 1 billion cycles per second.

Modern CPUs often run at 3–5 GHz (3–5 billion ticks per second). RAM runs slower, often in the hundreds or low thousands of MHz.

👉 That’s why CPUs sometimes get impatient waiting for RAM!

📊 An Example of Clock Speed

If RAM runs at 1600 MHz, that means it ticks 1.6 billion times per second.
If the CPU runs at 3.2 GHz, it ticks 3.2 billion times per second.

This means:

• CPU: Tick, tick, tick, tick… (very fast)

• RAM: Tick…… tick…… (slower)

The challenge is to make them work in sync despite this difference.

🕑 What Happens in a Clock Cycle?

In one RAM clock cycle, several things can happen:

1. The CPU places an address on the address bus.

2. RAM receives it and prepares the requested data.

3. The data is placed on the data bus.

4. The CPU reads the data when the clock tick signals it’s ready.

If the data isn’t ready yet, the CPU has to wait for more cycles. This waiting time is called latency.

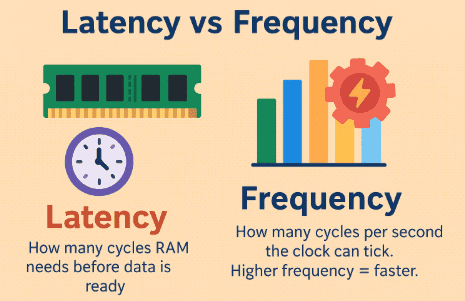

🏃‍♂️ Latency vs Frequency

Two important concepts:

1. Frequency (MHz/GHz): How many cycles per second the clock can tick. Higher frequency = faster.

2. Latency (measured in cycles): How many cycles RAM needs before data is ready.

👉 Example:

• RAM with 10 cycles of latency at 1600 MHz is slower than RAM with 12 cycles of latency at 3200 MHz, because the second one’s cycles are shorter.

This is why both speed and latency matter when comparing RAM.

🎶 Synchronization Between CPU and RAM

Since CPU and RAM run at different speeds, they need a conductor, like in an orchestra.

This conductor is the memory controller.

• It tells the CPU when to wait.

• It tells RAM when to send data.

• It keeps everyone in harmony so no one is too early or too late.

In old systems, the memory controller lived on the motherboard chipset.
In modern CPUs, the controller is built inside the CPU, reducing delays.

📡 Double Data Rate (DDR) Magic

Remember DDR RAM? The “double data rate” trick means:

• Instead of moving data only on the rising edge of the clock (when the signal goes up), it moves data on both the rising and falling edges.

• This doubles the amount of data per cycle without making the clock itself faster.

👉 It’s like taking a step with both feet instead of just one per beat.

📖 Real-World Example: Loading a Game Level

When you load a game:

1. CPU requests the textures (images), sounds, and code from RAM.

2. Each request takes multiple clock cycles.

3. Faster RAM with lower latency means the game loads and responds more quickly.

4. If RAM is too slow, the CPU has to stall, and the game may stutter.

This is why gamers care about both RAM speed and timings (latency numbers like CL16, CL18).

📝 Recap

• A clock cycle is one tick of the computer’s rhythm.

• CPU and RAM must be synchronized, even though they run at different speeds.

• Clock speed (MHz/GHz) tells how many cycles per second happen.

• Latency tells how many cycles it takes before RAM delivers data.

• The memory controller keeps CPU and RAM in harmony.

• DDR RAM transfers data twice per cycle, making it more efficient.
